Is Your Dryer Acting Up? The Control Board Could Be the Problem
The control board is the brain of your dryer — it manages every cycle, temperature setting, and function. When it fails, your dryer can behave erratically or stop working altogether. The good news: replacing a dryer control board is a manageable DIY repair that can save you hundreds of dollars over a service call or new appliance.
Common Symptoms of a Faulty Dryer Control Board
- Dryer won't start even though the door is closed and the power is on
- Stops mid-cycle without completing the drying process
- Error codes on the display (e.g., E1, F01, PF on Whirlpool/Maytag; E3, E4 on GE; d80, d90 on LG)
- Buttons or controls are unresponsive
- Dryer runs but won't heat (when heating element and thermal fuse test fine)
- Cycles run too long or too short
Before You Replace: Diagnose the Problem
A control board replacement is not always the first step. Rule out these common issues first:
- Check the power supply — Make sure the dryer is plugged in and the circuit breaker hasn't tripped. Electric dryers use two 120V legs; if one trips, the dryer may run but not heat.
- Test the door switch — A faulty door switch can prevent the dryer from starting. Use a multimeter to check for continuity.
- Inspect the thermal fuse — A blown thermal fuse is one of the most common dryer failures. It's inexpensive and easy to replace.
- Check the start switch — If the start button feels loose or doesn't click, the switch itself may be the issue.
- Look for visible damage on the board — Burn marks, swollen capacitors, or cracked solder joints are clear signs the board has failed.
If all of the above check out and your dryer still isn't working correctly, the control board is the likely culprit.
Tools You'll Need
- Phillips and flathead screwdrivers
- Nut driver (¼" and 5/16" are most common)
- Needle-nose pliers
- Multimeter (for testing)
- Smartphone or camera (to photograph wire connections before disconnecting)

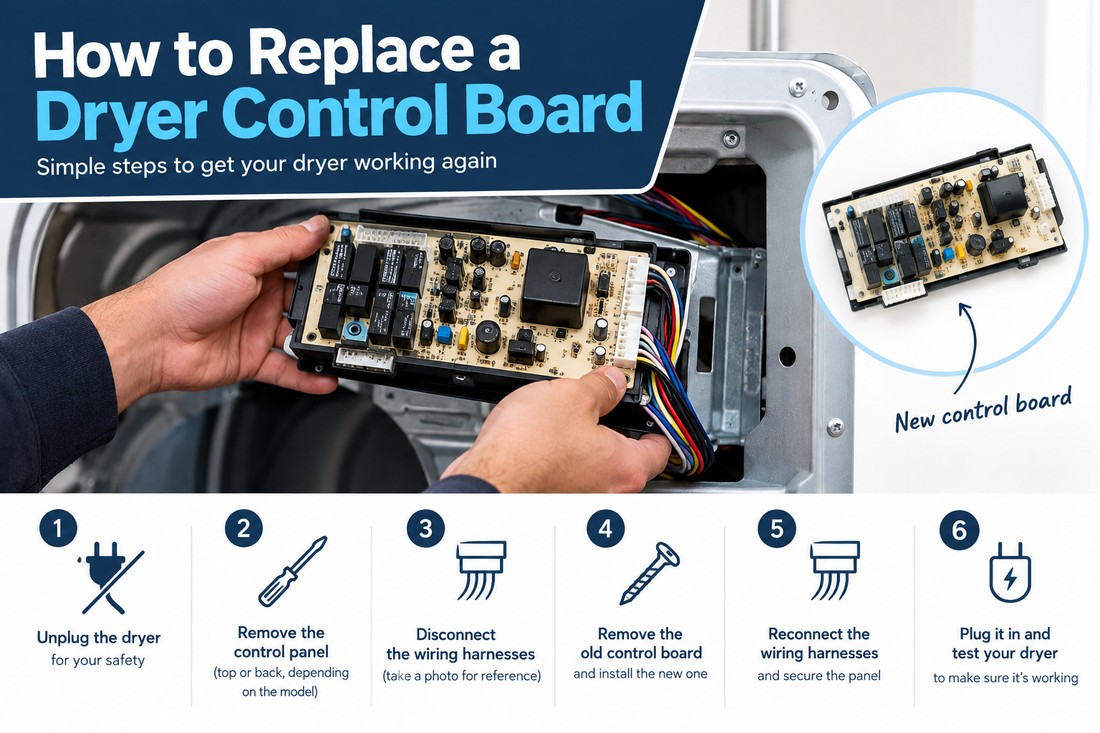

How to Replace a Dryer Control Board: Step-by-Step
Step 1: Unplug the dryer. Safety first — always disconnect power before working on any appliance.
Step 2: Locate the control board. On most dryers, the control board is housed in the control panel at the top rear of the machine. On some front-load models, it may be behind the front panel.
Step 3: Remove the control panel. Depending on your model, you'll remove screws along the back edge of the top panel, or clips along the front. Gently tilt or lift the panel to access the board.
Step 4: Photograph all wire connections. Before disconnecting anything, take clear photos of every wire harness and connector attached to the board. This is your roadmap for reassembly.
Step 5: Disconnect the wire harnesses. Carefully press the release tabs and pull each connector free. Never yank on the wires themselves.
Step 6: Remove the old board. The board is typically held in place by plastic clips or screws. Release the clips or remove the screws and slide the board out.
Step 7: Install the new OEM control board. Seat the new board into the same position, secure it with the clips or screws, and reconnect all wire harnesses using your photos as a guide.
Step 8: Reassemble and test. Reattach the control panel, plug the dryer back in, and run a test cycle to confirm the repair was successful.
Finding the Right OEM Replacement Control Board
Always use an OEM (Original Equipment Manufacturer) replacement board for the best fit and reliability. You'll need your dryer's model number, which is typically found on a sticker inside the door frame or on the back of the machine.
Common model-specific control boards we carry:
- Whirlpool / Maytag dryers — including part numbers W10810427, W10206032, W10074270, W10740694
- GE dryers — including part numbers 175D6798G002, 234D2377P001
- Kenmore dryers — including part numbers 3976617, 8546223
- LG dryers — including part numbers EBR62707630, EBR33073405
- Frigidaire dryers — including part number 916062743
Browse our full selection of OEM dryer control boards and parts to find the exact replacement for your model.
Frequently Asked Questions
How do I know if my dryer control board is bad?
The most reliable signs are error codes on the display, the dryer not starting or stopping mid-cycle, and unresponsive buttons — especially after ruling out simpler causes like a blown thermal fuse or faulty door switch.
Can I repair a dryer control board instead of replacing it?
In some cases, a board repair service can fix burnt components or failed solder joints. However, for reliability and warranty coverage, an OEM replacement board is usually the better long-term investment.
How long does it take to replace a dryer control board?
Most DIYers complete this repair in 30–60 minutes. Having the right tools and photographing connections before disassembly makes the job much faster.
Will any control board work in my dryer?
No — control boards are model-specific. Always match the part number to your dryer's model number to ensure compatibility.
Is it worth replacing a dryer control board?
Absolutely. A new OEM control board typically costs $50–$150, compared to $300–$600 for a professional repair or $500–$1,200 for a new dryer. If the rest of the appliance is in good shape, replacing the board is almost always the smart financial choice.
